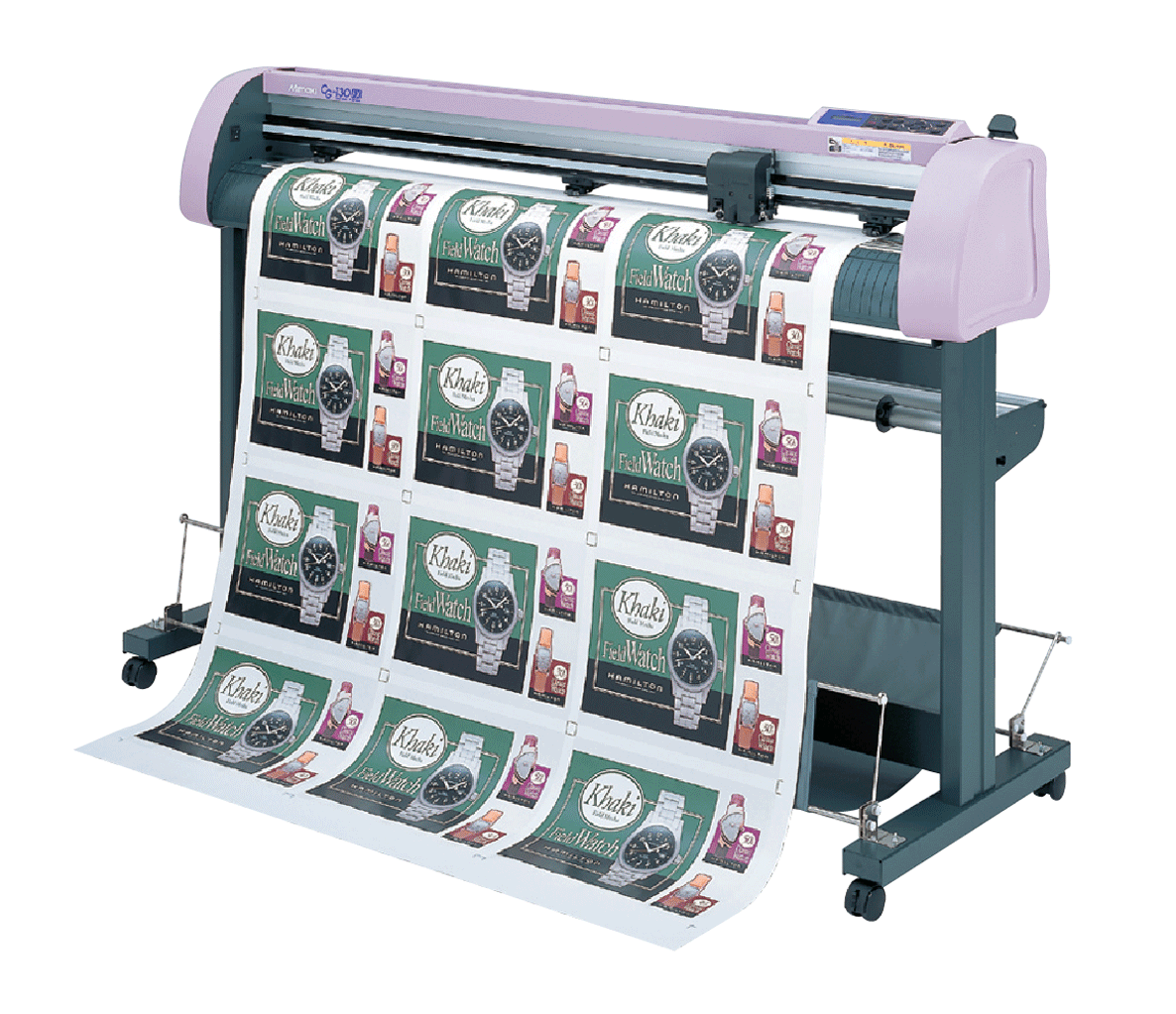

CG-FXll
| Cutting plotter | CG-75FXII | CG-130FXII | CG-160FXII | |||
| Acceptable sheet width | 9 – 104 cm | 9 – 158 cm | 9 – 188 cm | |||
| Effective cutting area (1) | 760 mm x 51 m | 1300 mm x 51 m | 1600 mm x 51 m | |||
| Max. speed (2) | 140 cm/s | |||||
| Max. cutting speed | 100 cm/s | |||||
| Adjustable speed range (3) | 1 – 10 cm/s : 1 cm step adjustment 10 – 40 cm/s : 5 cm step adjustment 40 – 100 cm/s : 10 cm step adjustment |
|||||
| Repeatability | ± 0.2 mm (excluding shrinkage / expansion caused by film temperature) | |||||
| Guaranteed range of accuracy (4) | 760 mm x 10 m | 1300 mm x 10 m | 1600 mm x 10 m | |||
| Max. pressure | 400 g | |||||
| Acceptable sheet (5) | Vinyl up to 0.25 mm thickness, fluorescent type vinyl, reflective sheet | |||||
| Applicable tools (6) | Cutter, water-based ball-point pen, oil-based ball-point pen. Also pouncing tool for CG-SRII and CG-FXII series. | |||||
| Interface | USB, RS-232C | |||||
| Power consumption | AC100V-240V, 130VA or less | |||||
| Dimensions (WxDxH) | 1285 x 700 x 1217 mm | 1825 x 700 x 1217 mm | 2125 x 700 x 1217 mm | |||
| Weight | 50 kg | 60 kg | 69 kg |
|||
